SpecSeal Cast-in Device for Large Diameter Pipes

SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes
SpecSeal Cast-in Device for Large Diameter Pipes

SpecSeal Cast-in Device for Large Diameter Pipes

The SpecSeal® 8 Inch Cast-In Firestop Device is an integrated sleeve and firestopping device that includes a removable core for a clean, ready-to-use opening. The device consists of a sturdy sheet metal housing encompassing an intumescent firestopping and smoke-sealing system. The 8 in (203 mm) device is available in two versions accommodating both plastic and metallic pipe

Test Standards ASTM E814 (UL1479)
 CAN/ULC-S115
Third Party Approvals
Contact Us
Key Resources
Key Tools

BIM Object(s)

Features

  • Saves money by eliminating core drilling
  • Devices available for metal and plastic piping
  • Saves time - no firestopping step required
  • Provides pre-installed fire and smoke seal
  • Adapts to a wide variety of construction conditions
  • Device is bidirectional allowing for both floor and ceiling penetration
  • Multiple versions are available to match varying concrete depths
  • Factory-metered dose of intumescence; eliminates guess work
  • Environmentally friendly
  • Manufactured in the USA in an ISO certified facility
Applications
Blank Openings
Metallic Pipe
Plastic Pipe
Properties
Permanent
Finished Product
Intumescent

Specifications

Property Value
Housing Construction Zinc-plated, Cold Rolled Steel (SECC)
Expansion Begins 320°F (160°C)
Volume Expansion 30x to 60x
In Service Temperature Max. 130°F (54°C)
Shelf Life No Limit
Standard Device Footprint 16.25 in (413.8 mm)

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image

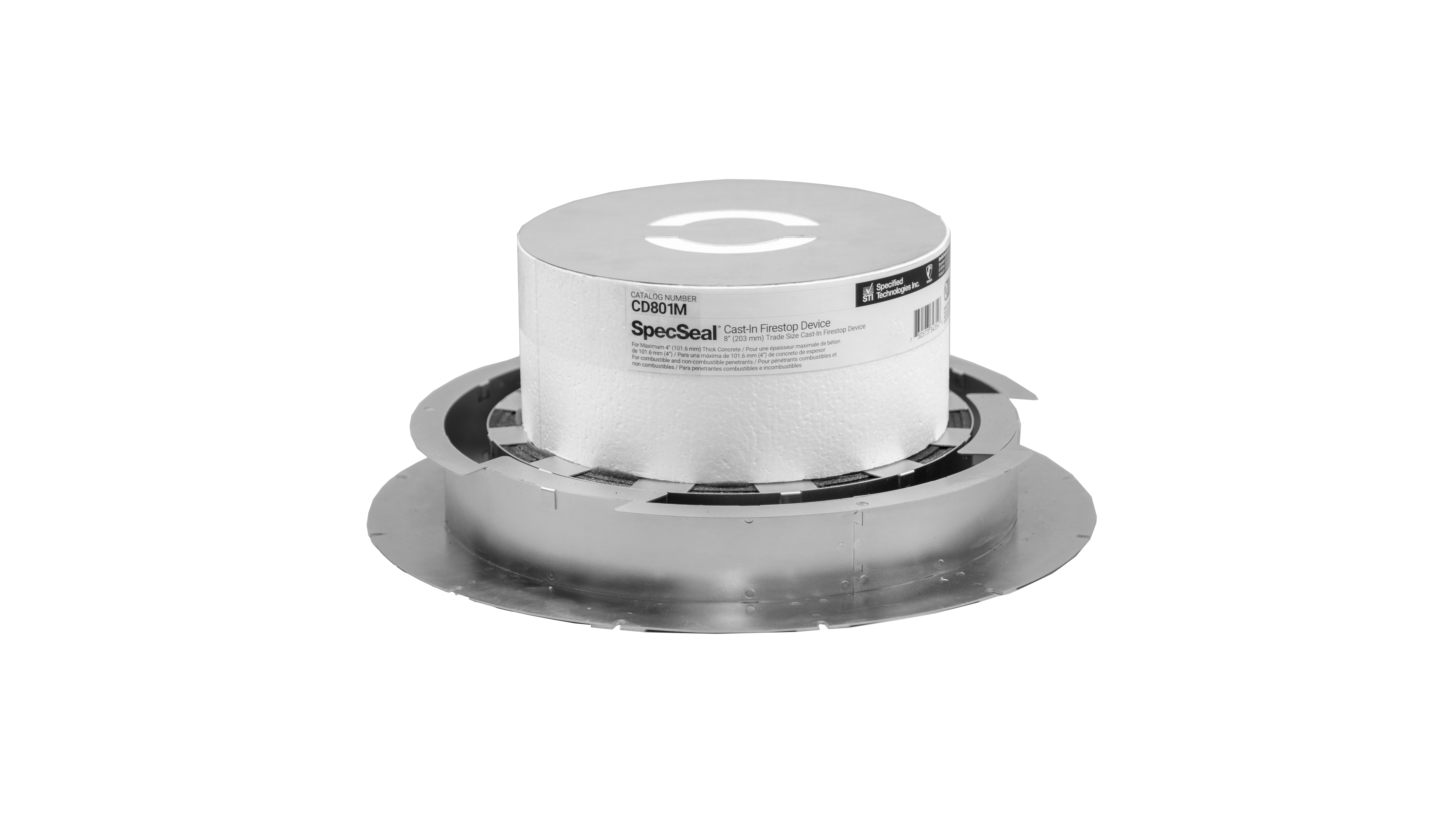

CD801M 730573343548 8-inch Cast-In Device x 6-inch Height, Metallic 1 1 8 lbs 8-inch Cast-In Device x 6-inch Height, Metallic
CD801P 730573343463 8-inch Cast-In Device x 6-inch Height 1 1 12.35 lbs 8-inch Cast-In Device x 6-inch Height

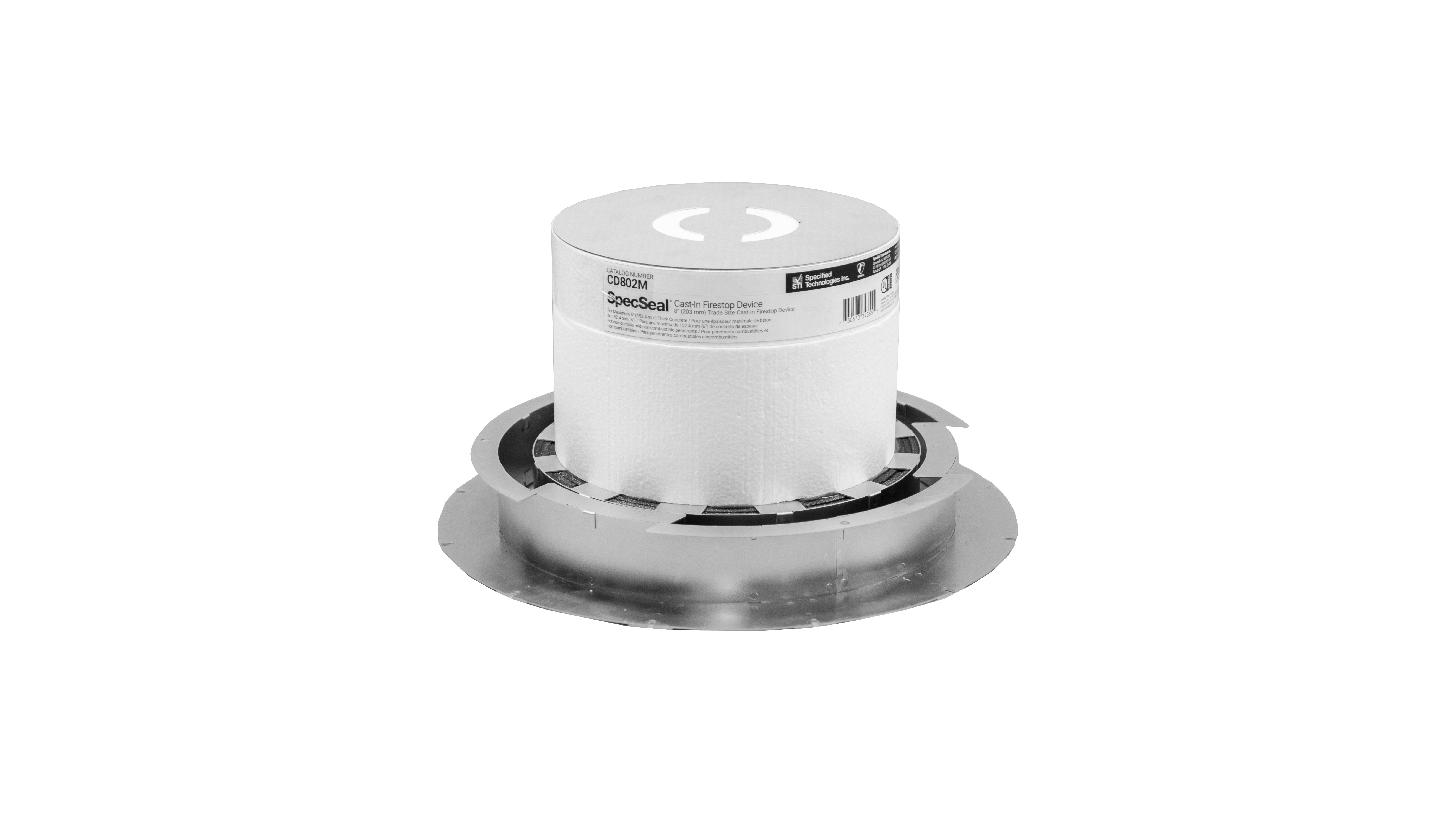

CD802M 730573343555 8-inch Cast-In Device x 8-inch Height, Metallic 1 1 8.13 lbs 8-inch Cast-In Device x 8-inch Height, Metallic

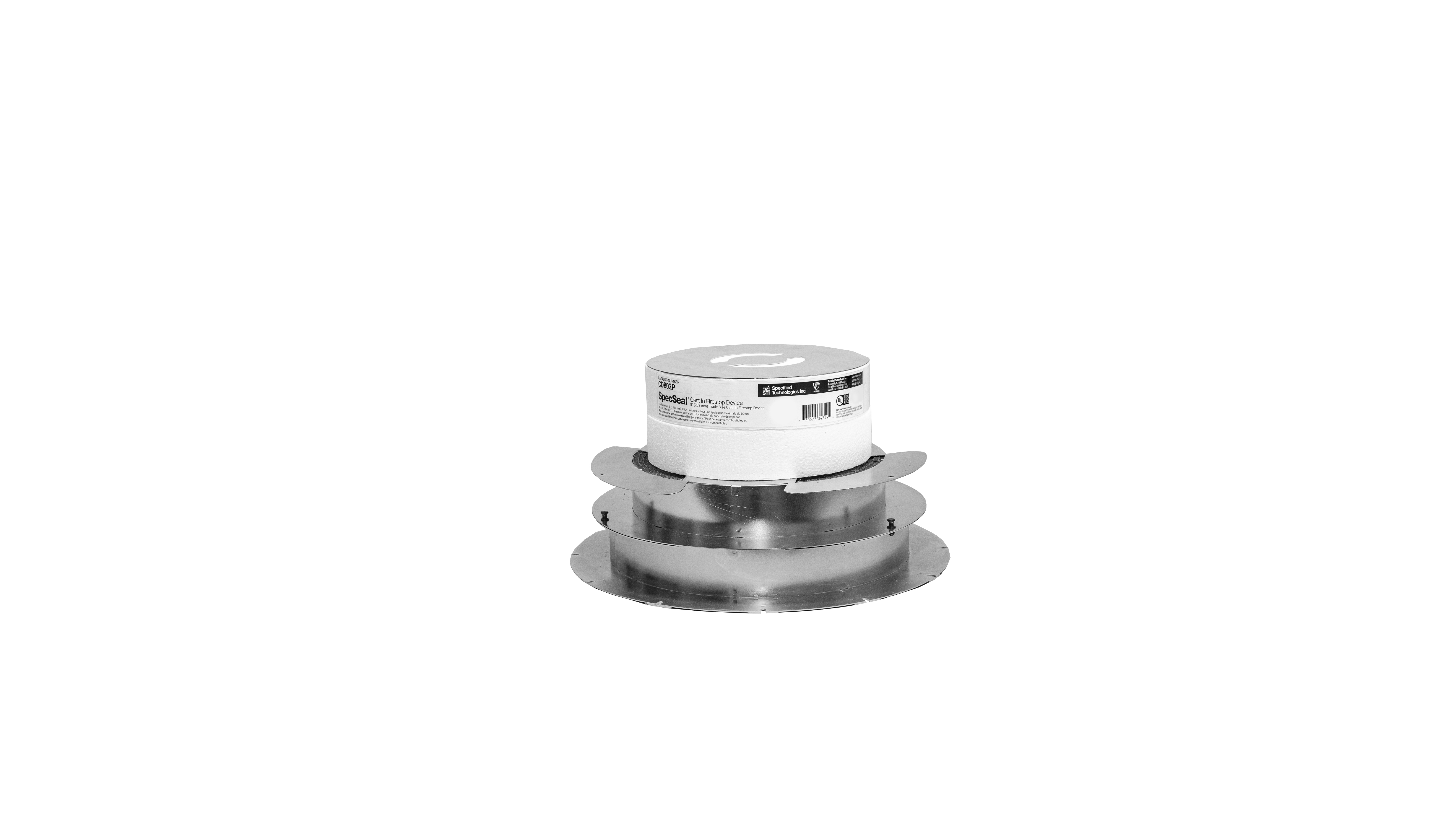

CD802P 730573343494 8-inch Cast-In Device x 8-inch Height 1 1 12.48 lbs 8-inch Cast-In Device x 8-inch Height

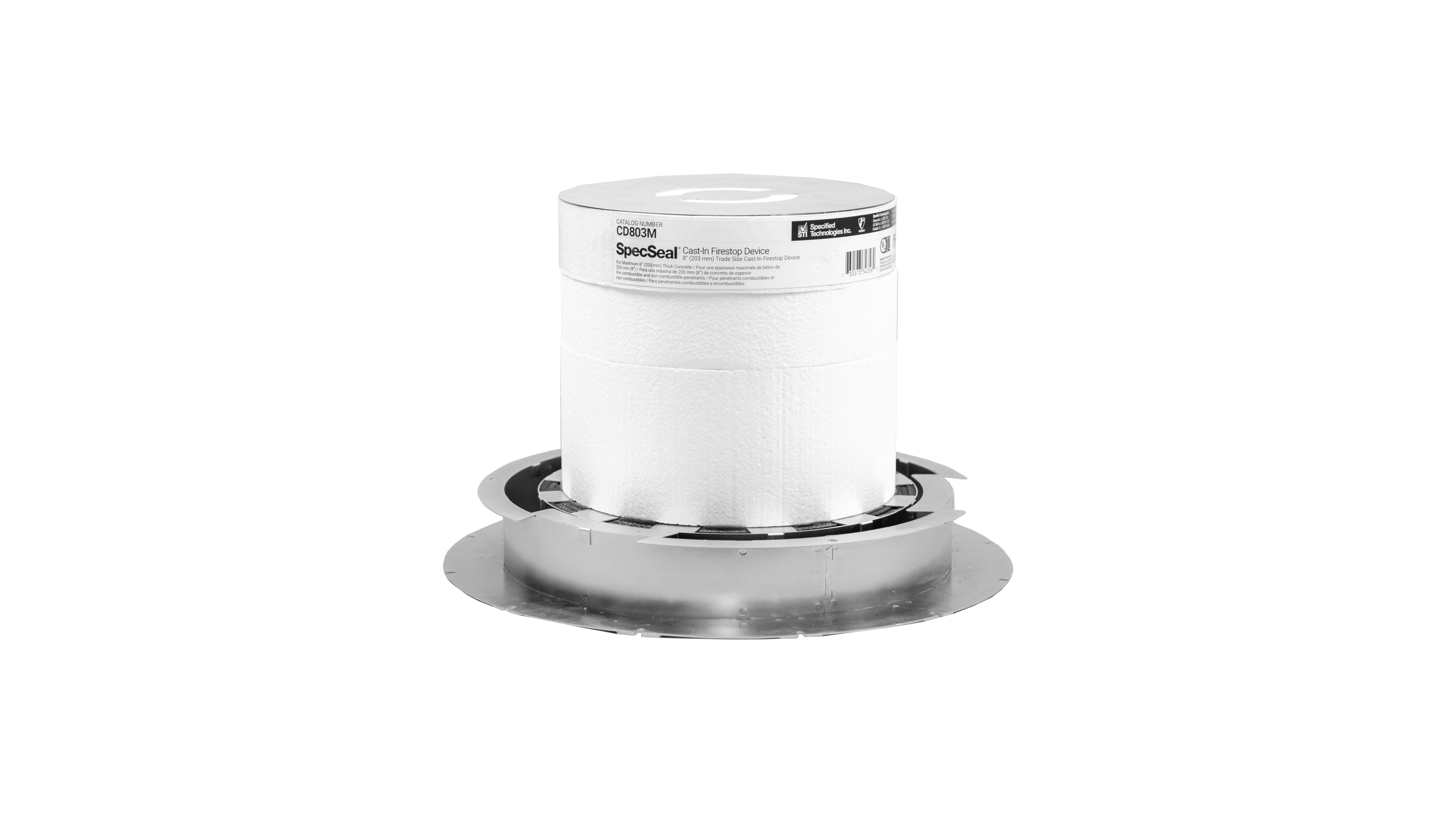

CD803M 730573343562 8-inch Cast-In Device x 10-inch Height, Metallic 1 1 8.26 lbs 8-inch Cast-In Device x 10-inch Height, Metallic

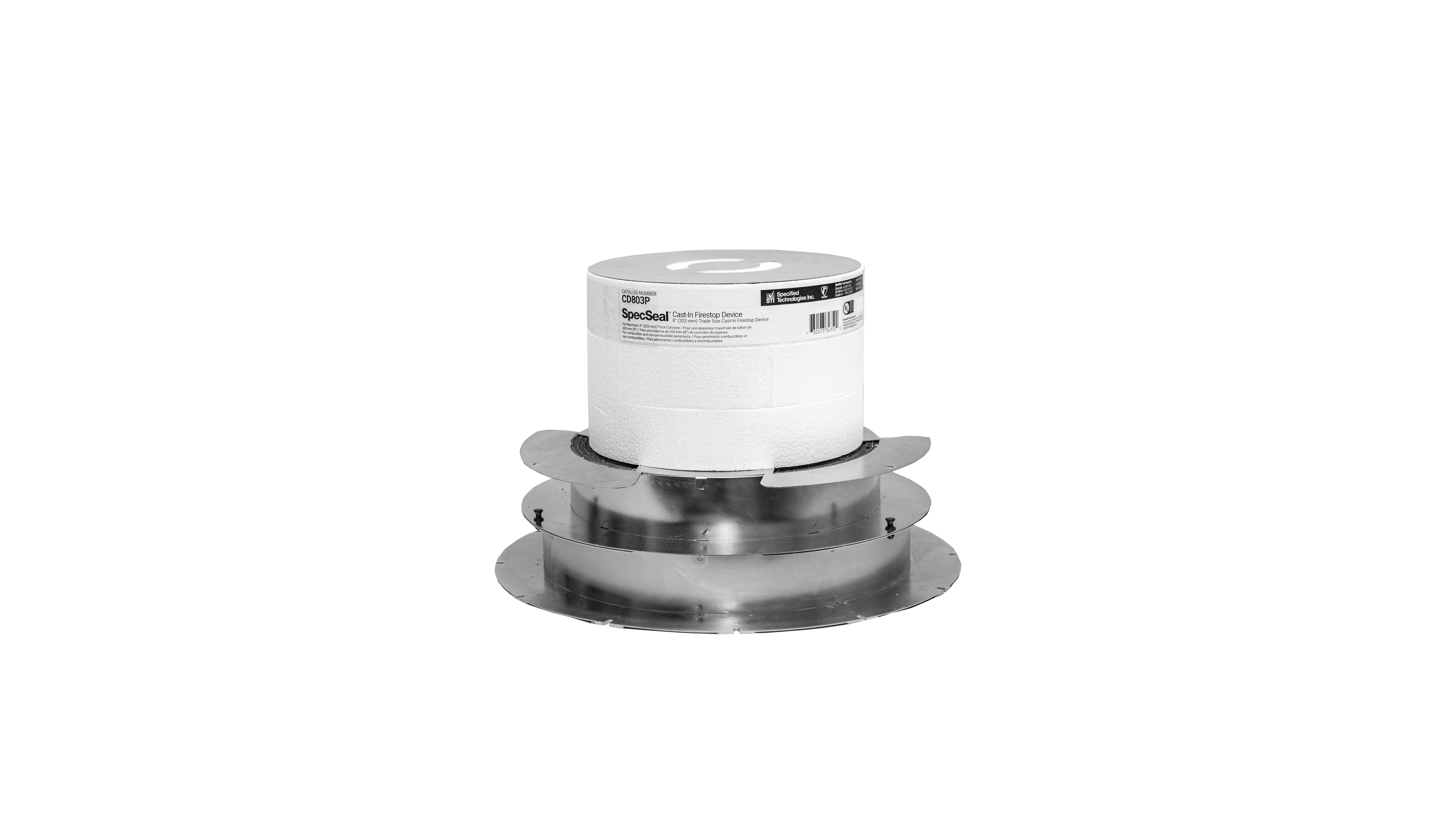

CD803P 730573343500 8-inch Cast-In Device x 10-inch Height 1 1 12.61 lbs 8-inch Cast-In Device x 10-inch Height

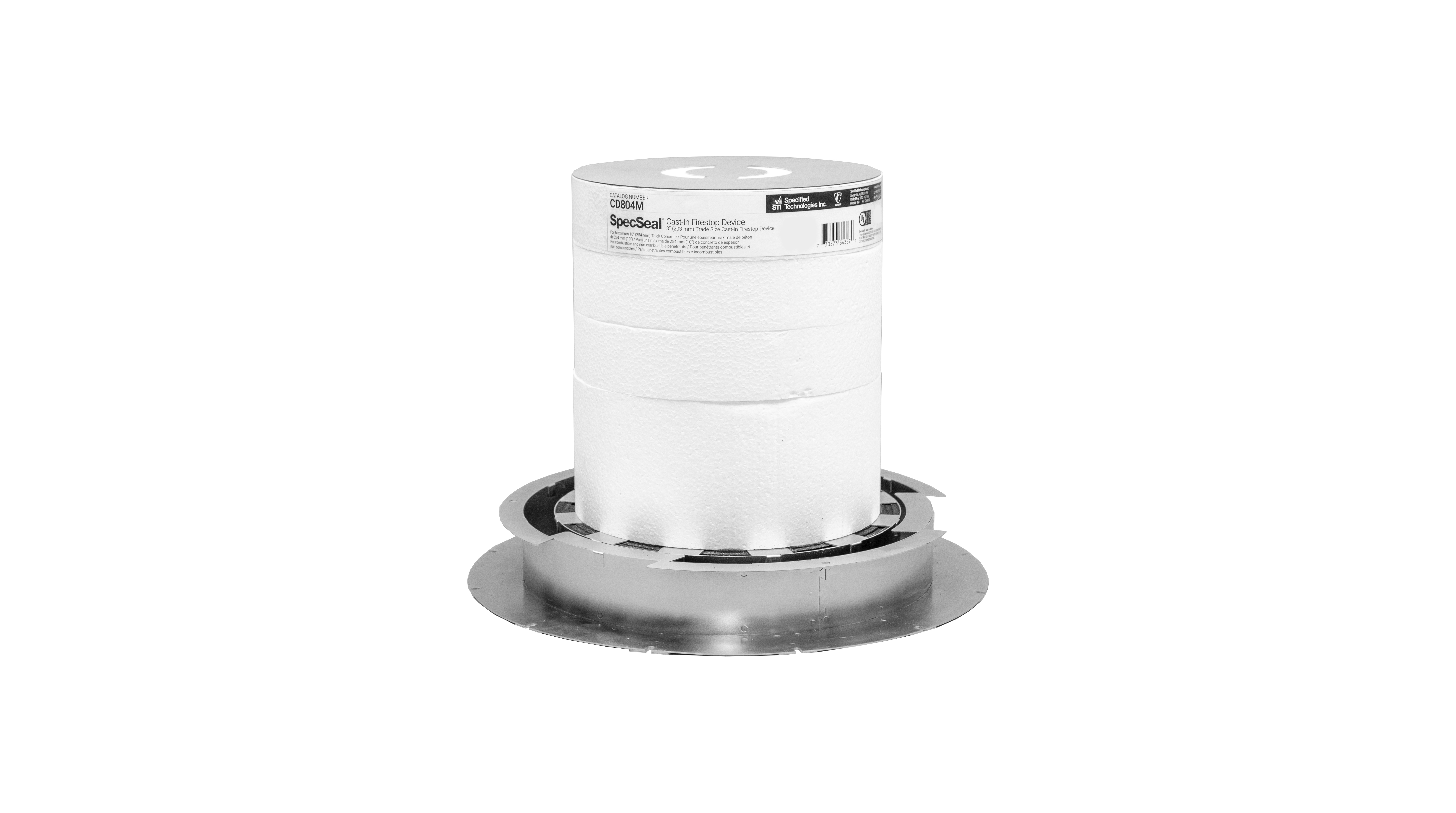

CD804M 730573343579 8-inch Cast-In Device x 12-inch Height, Metallic 1 1 8.39 lbs 8-inch Cast-In Device x 12-inch Height, Metallic

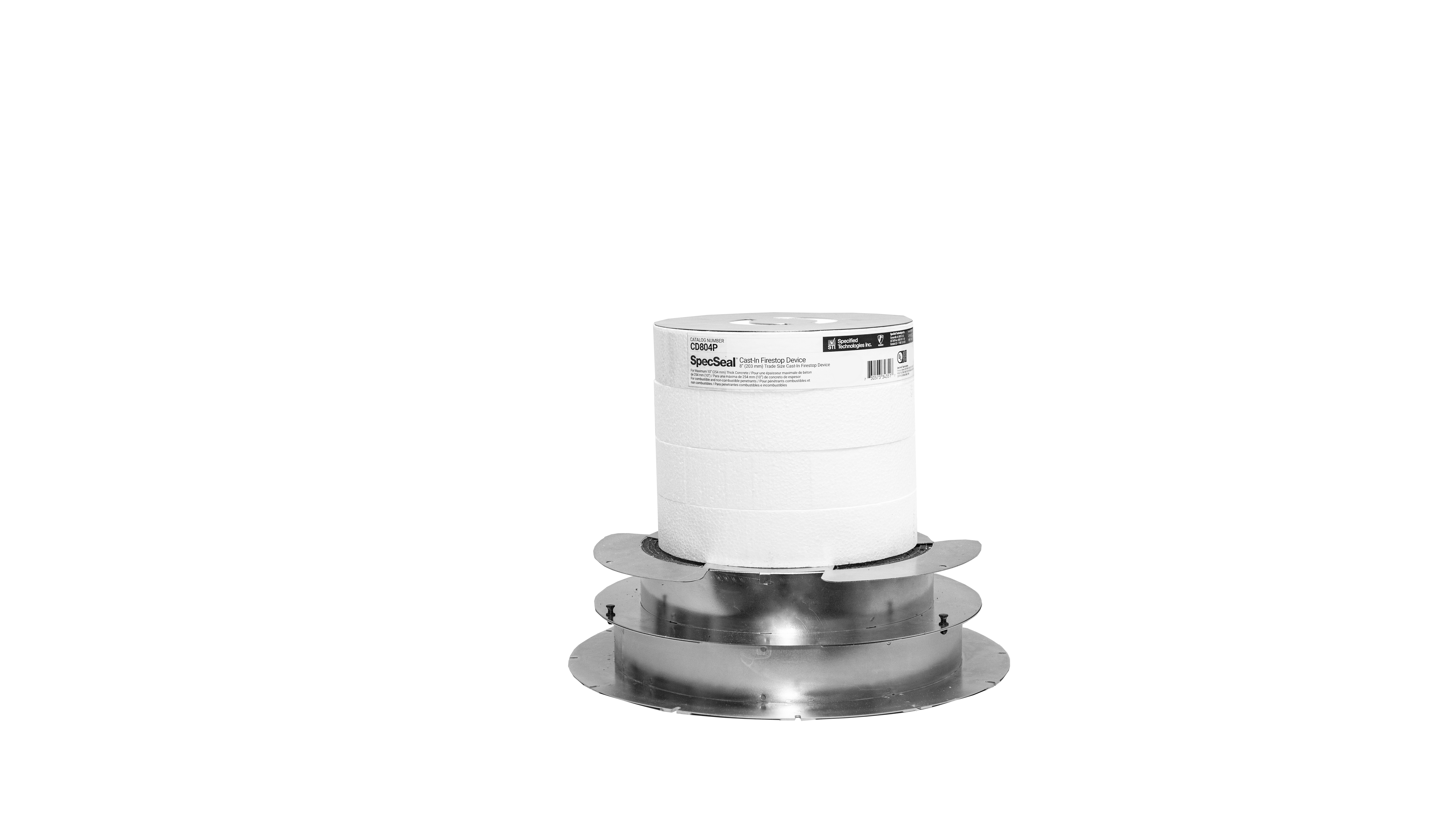

CD804P 730573343517 8-inch Cast-In Device x 12-inch Height 1 1 12.74 lbs 8-inch Cast-In Device x 12-inch Height

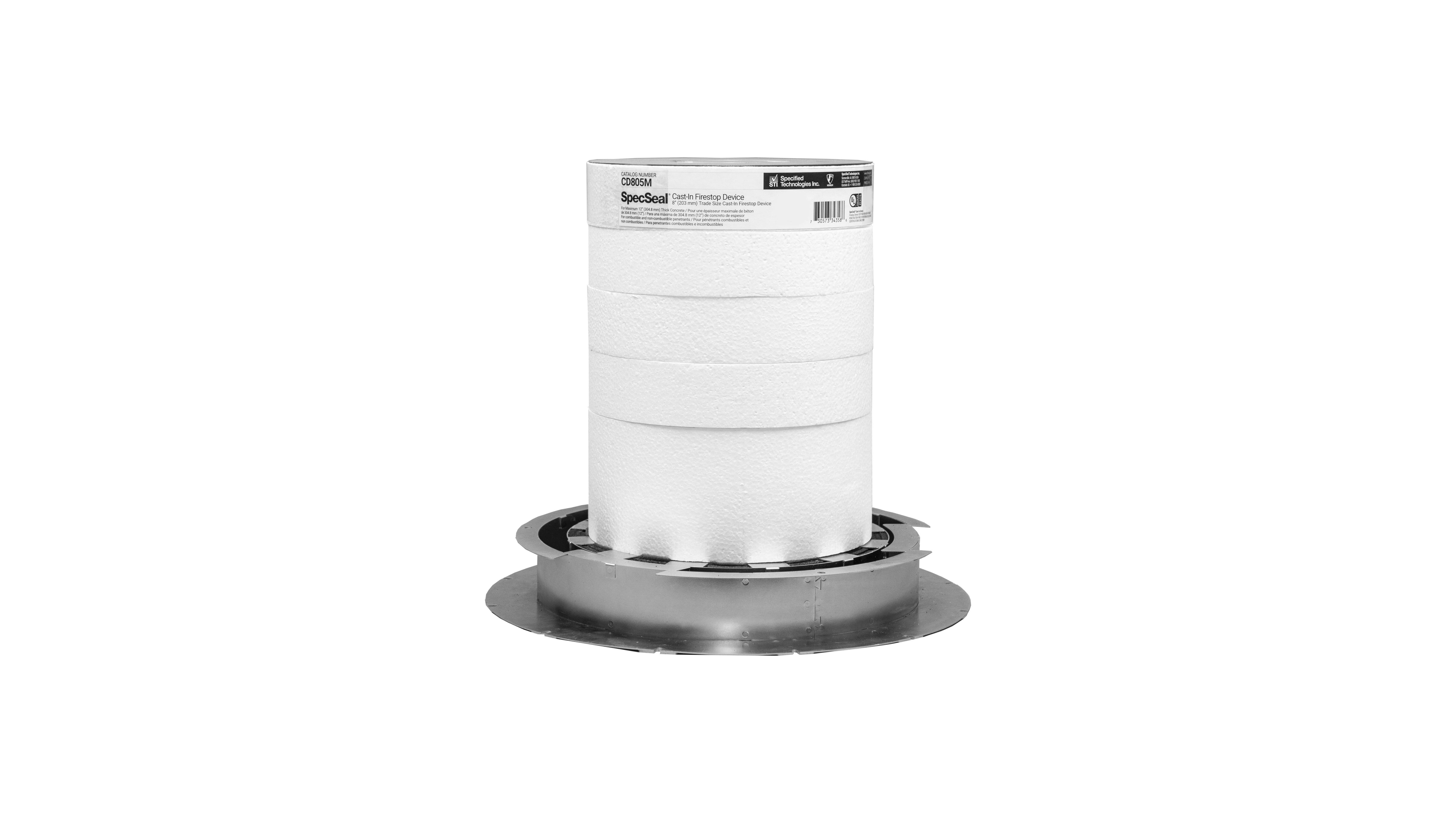

CD805M 730573343586 8-inch Cast-In Device x 14-inch Height, Metallic 1 1 8.52 lbs 8-inch Cast-In Device x 14-inch Height, Metallic

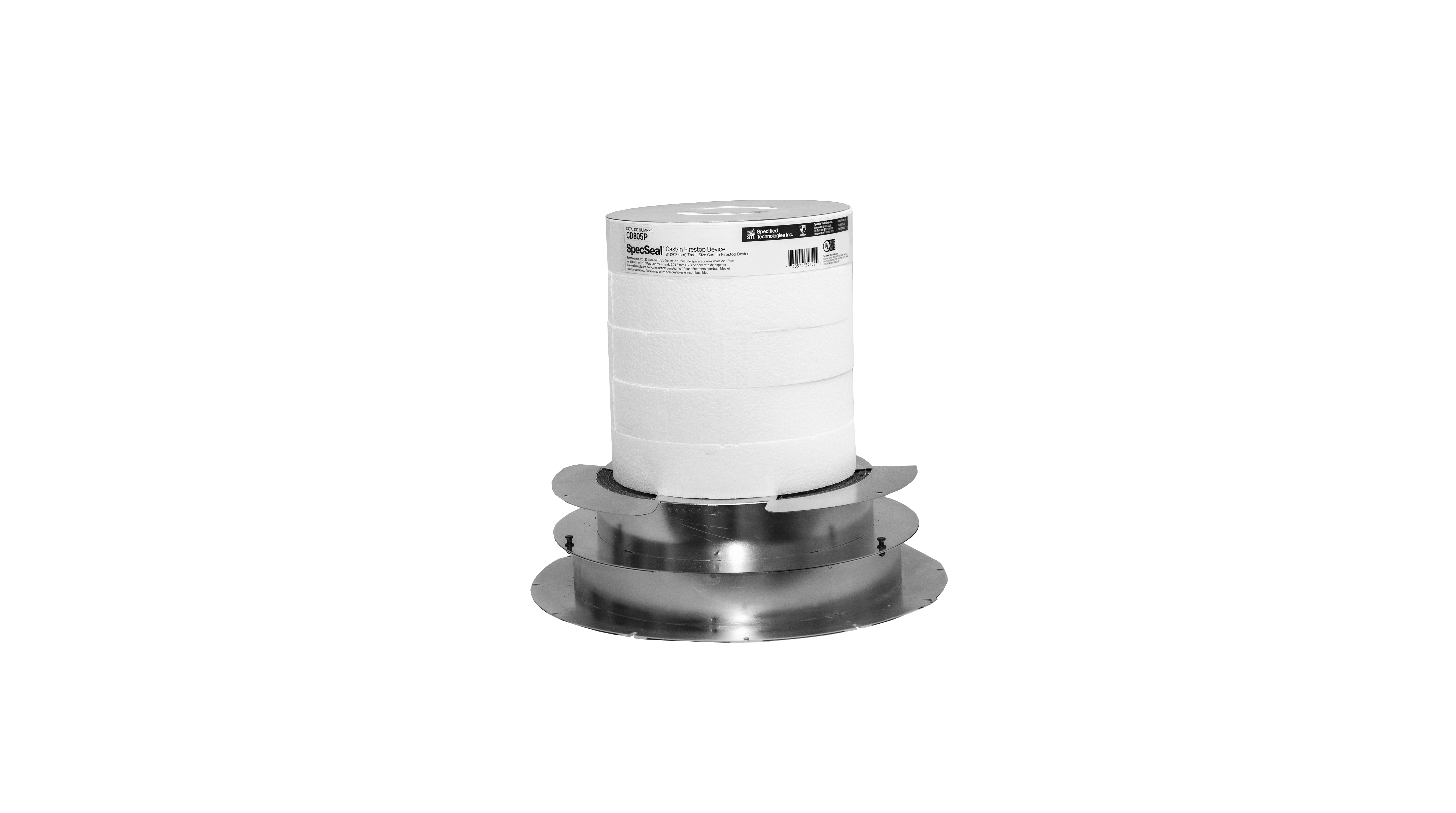

CD805P 730573343524 8-inch Cast-In Device x 14-inch Height 1 1 12.87 lbs
